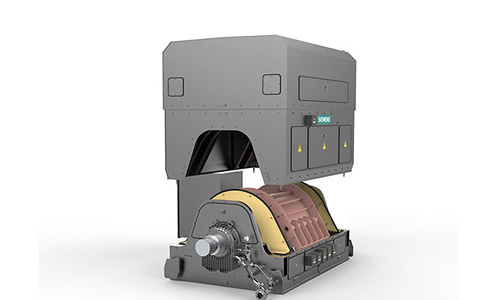

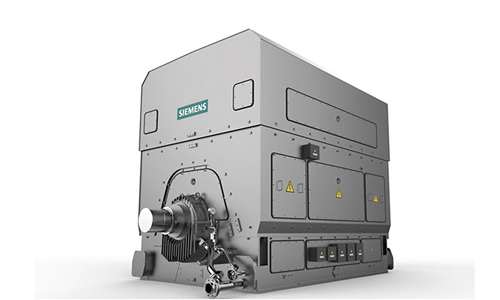

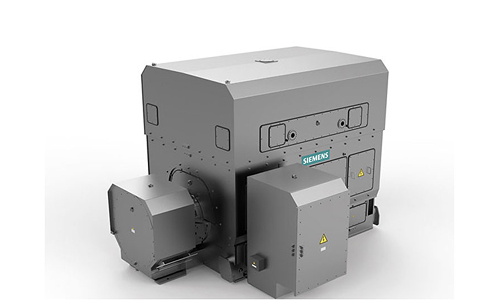

INNOMOTICS HV HP (synchronous)
INNOMOTICS HV HP is a platform motor which is characterized by a unique grade of modularity and adaptability to customer specific requirements.
The standardized platform concept of INNOMOTICS HV HP combines the advantages of a serial production like short lead times, fast offer and order performance, improved quality and documentation and high delivery reliability with the advantages of tailor-made solution which can be flexibly and efficiently adjusted to your requirements.
With the INNOMOTICS HV HP for the first time taylor-made motors of the topmost power range are available in the Innomotics configuration tools: for an easy selection and configuration, accelerated offer performance and reduced efforts.
With a multitude of possible options and its wide speed range INNOMOTICS HV HP can cover many complex applications in various industries like oil and gas industry, chemicals, metals and marine for applications like compressors, pumps, extruders, refiner, generators and fans & blowers.
INNOMOTICS HV HP is able to realize efficiency rates of close to 99 % for the synchronous version by optimized motor design.
The motors are optimized for DOL operation and also for operation with INNOMOTICS MV converters, which leads to reliable and cost effective drive systems over the whole life cycle.
Technical Data
| Motor technology: | Synchronous |
| Power range: | 3 - 70 MW |
| Speed: | 130 - 3600 rpm |
| Rated voltages: | 3 - 13.8 kV |
| Cooling type: | IC 81W / IC 86W / IC 616 / IC 666 / IC01 / IC31 / WPII |
| Design: | IM1001, IM1101, IM1205, IM1305 |
| Efficiency: | Up to 98.8 % |
Features
- Available for applications in extreme temperatures and rough ambient conditions
- High power applications with special start-up requirements
- Highest efficiency values
- For explosive environments such as gas: Zone 1 / 2 designed as Ex n, Ex p or Class1, Division II Dust protection is also available: Zone 22 designed as Ex pD
- Fulfills all major standards and specifications e.g. API, Certificate TR CU, CSA, NEMA and other national norms
- Optimized baseframe leads to high mechanical rigidity, improved rotor dynamic and low noise levels and noise protection
Your Advantages
- Accelerated projects - Siemens configuration tools
- Reduced efforts and time saving
- Short lead times, fast offer and order performance, improved quality and documentation and high delivery reliability
- Taylor-made solution with wide range of options, certificates and standards
- Efficiently adjusted to individual requirements
- Increased plant availability - Fast and easy access to spare parts due to largely standardization
- Fast implementation - Standardized interfaces
- High reliability and low vibrations even in rough ambient conditions - Innovative baseframe design
- Reduced operating costs
- 3D structure models - PLM software Unigraphics NX and Teamcenter
